Elite Protection Bundle

Regular price
$1,665.94
Regular price
Sale price
$1,665.94
-0%
Caret Down
Caret Down
Caret Down

By clicking "Buy Now," you accept StreamLabs' products and terms of service.

Caret Down

Description

Caret Down

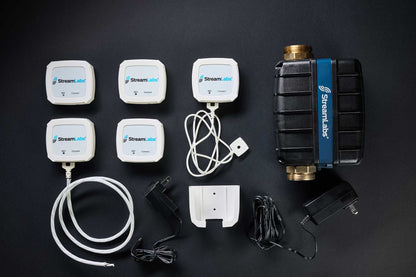

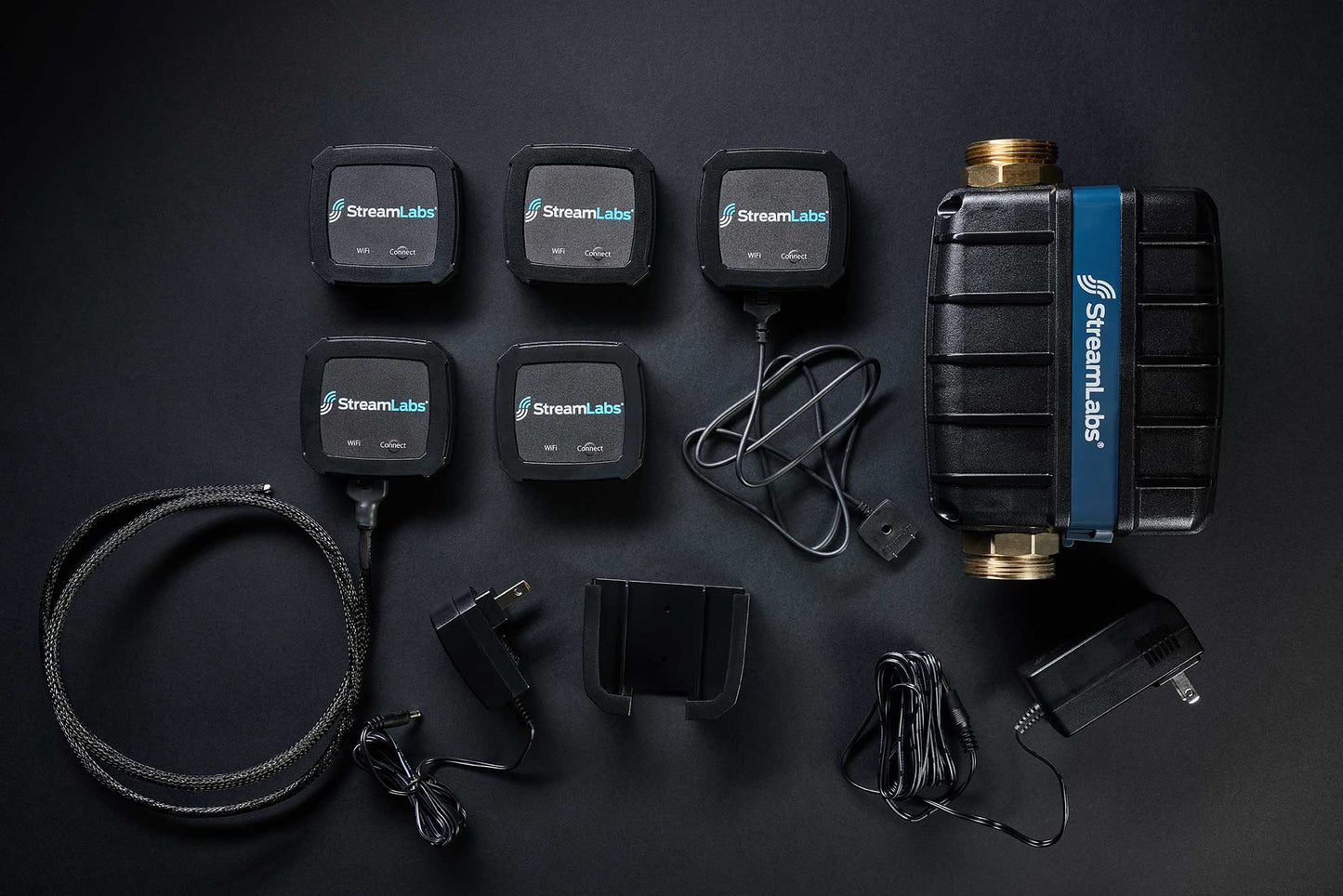

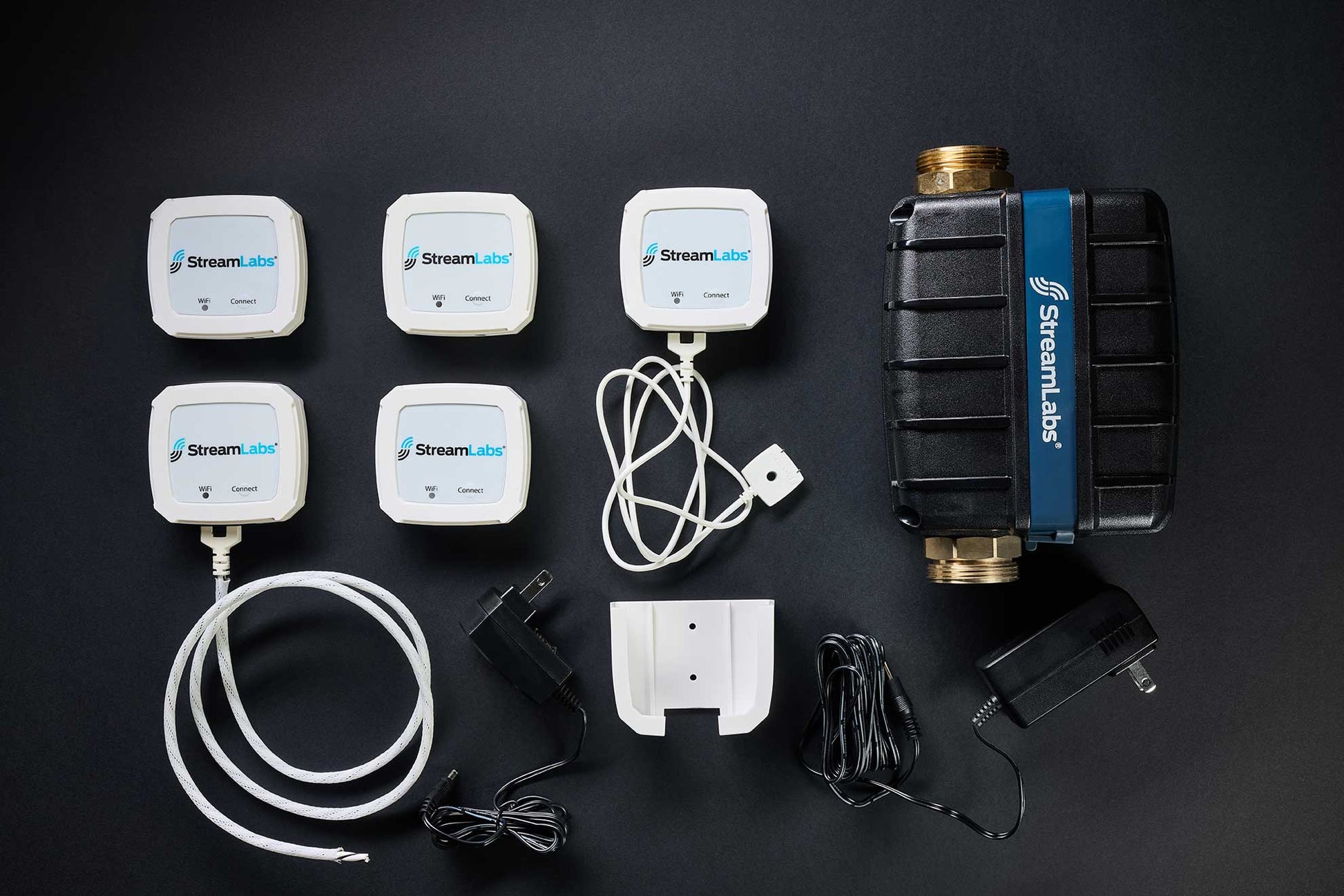

1- StreamLabs Control
Smart automatic water shut-off valve with ultrasonic flow metering. Tracks water usage, detects leaks or freezing, and shuts off water automatically to prevent damage. Manage through the StreamLabs App for real-time monitoring and alerts.

2- Wall Mount
Discreetly mount your device under cabinets or behind fixtures with the wall mount sleeve, perfect for optimizing space.

1- . 3.3V DC Power Supply
Optional power supply ensures reliable backup for the Scout with the included CR-123 battery.

5- StreamLabs Scout
Wi-Fi-enabled water leak sensor with real-time alerts, temperature, and humidity monitoring. Pairs with the Control for automatic shut-off or works standalone for leak detection.

2- Scout 3-ft. Rope Sensor
3-ft. sensor detects water along its length. Ideal for sinks, appliances, and water heaters, expanding leak detection coverage and preventing water damage.

1- Scout Point of Leak Sensor
Compact sensor for targeted leak detection near floors, drain pans, or HVAC systems. Includes a 3-ft. cable for flexible placement.



Technical Specifications

Caret Down
  • Dimensions: 8.0" (L) x 3.5" (W) x 5.4" (H)
  • Weight: 3.5 lbs (not including fittings)(H)
  • Warranty: 1 year limited product warranty
  • App Compatibility: iOS, compatible with iPhone or iPad, Android, compatible with phone or tablet*
  • Low-Flow Detection: 0.1 gpm low-flow detection

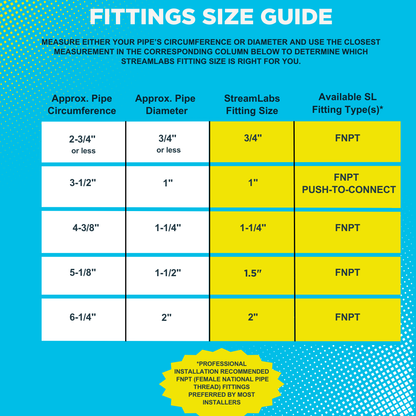

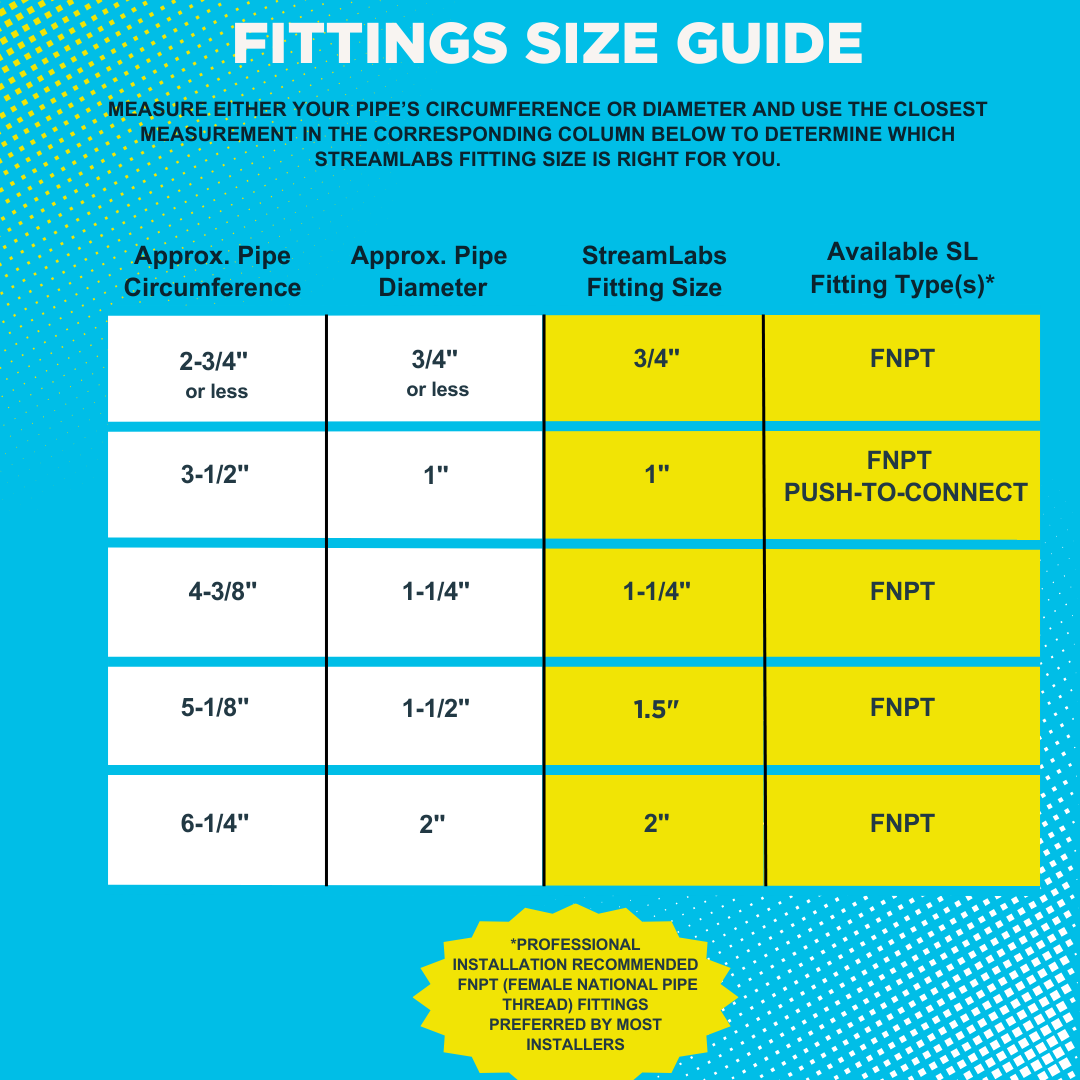

  • Compatible Pipe Sizes: 3/4", 1", 1-1/4" Copper Tube Size (CTS) – Depending on fittings
  • Compatible Pipe Types: FNPT Threaded Connection: Any pipe type SharkBite®Connection:PEX, copper, CPVC, PE-RT**
  • Universal Power Supply: Input: 100-240VAC~50/600Hz, 0.5A;Output:12 V @ 1 A UL Listed 10’ cord included, 25’ & 50’ extension cable sold separately max distance 100’
  • Power Supply Length: 10 ft.(additional extension cables available for purchase, 25 & 50 ft.)
  • Water Temperature: min. 40°F (4.4°C) / max. 105°F (40°C) for optimal flow accuracy
  • Operating Pressure: max. 200 psi (14 bar) Limited by Pipe
  • Ambient Temperature: min. 32° F (0° C) / max. 115° F (46.1° C)for optimal flow accuracy
  • Operating Environment: Indoor use only.May be installed outdoors with a NEMA approved enclosure
  • IP Rating: IP 54 / 56 Rating***
  • Network: Wi-Fi 802.11b/g/n, 2.4 GHz

*Contact StreamLabs support for most up-to-date compatible version
**1-1/4" SharkBite fitting not approved for PE-RT use
***IP 54 rated for indoor use, IP 56 rating achievable with outdoor NEMA approved enclosure

Product Detection Settings

  • Slow Leak: 0.1, 0.25, 0.5, 1.0 GPM for 1, 5, 10, 15, 20, 30, or 60 mins
  • Major Leak: 2, 3, 4, 5, 10, 15 GPM for 5s, 30s, 1, 5, 10, 20, or 30 mins
  • Away Mode: Flow above 0.1 GPMThat lasts longer than 5s, 15s, 30s, 1, or 5 mins
  • Smart Alert: Control can learn usage habits, notify of any abnormal usage and shut off the water (optional)
  • Drip Detect™: Daily, Weekly, or Monthly Test (user configurable)
  • Pressure Alert: LOW: 10 psi, 20 psi, 30 psi, 40 psi for 1 minHIGH: 70 psi, 80 psi, 90 psi, 100psi for 1 min
  • Humidity Alert: LOW: 20%, 25%, 30%, 35% for 5 minsHIGH: 50%, 60%, 70%, 90% for 5 mins
  • Water Temperature Alert: LOW: 50°F, 45°F, 40°F, 35°F for 1 minHIGH: 90°F, 95°F, 100°F, 115°F for 1 min
  • Ambient Temperature Alert: LOW: 50°F, 45°F, 40°F, 35°F for 5 minsHIGH: 90°F, 100°F, 115°F, 120°F for 5 mins

*These settings are subject to change with updated software versions

Listings and Approvals

  • NSF/ANSI-61, NSF/ANSI-372, FCC, IC
