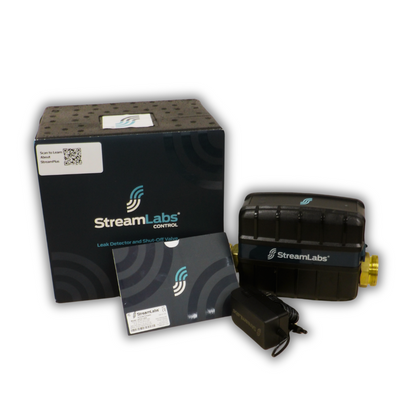

StreamLabs Control

Regular price
$999.00
Regular price
Sale price
$999.00
-0%
Caret Down
Caret Down

By clicking "Buy Now," you accept StreamLabs' products and terms of service.

Caret Down

Description

Caret Down

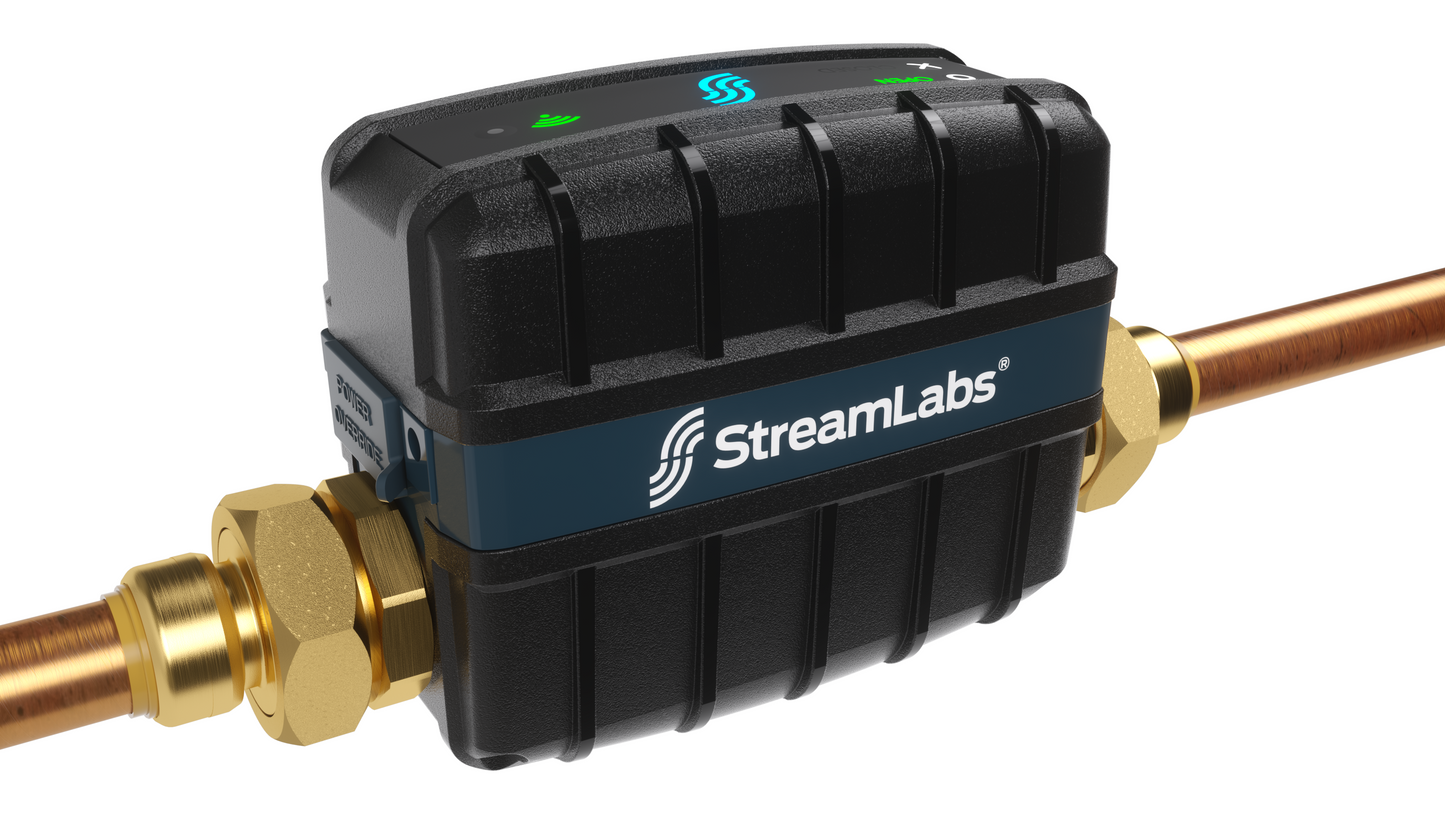

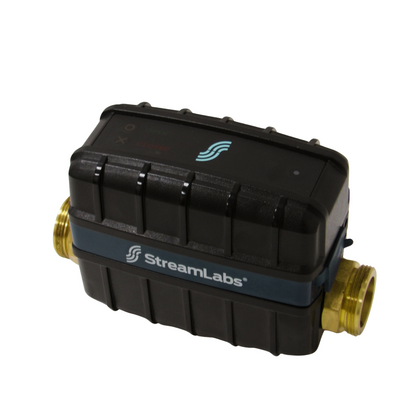

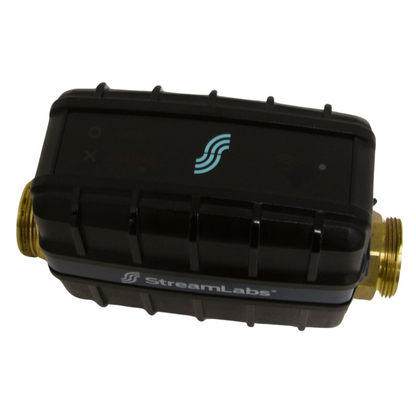

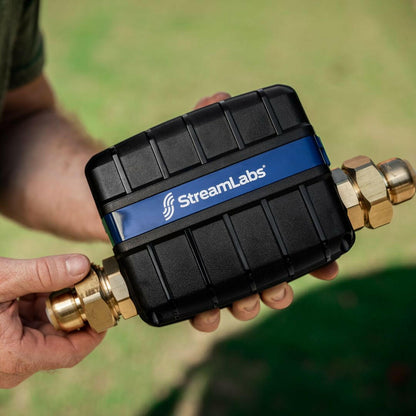

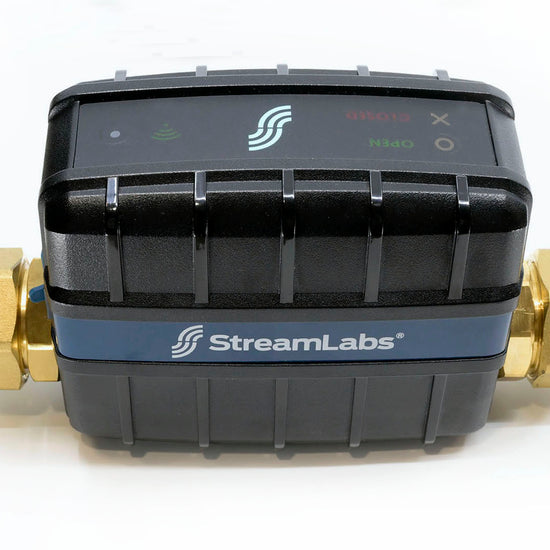

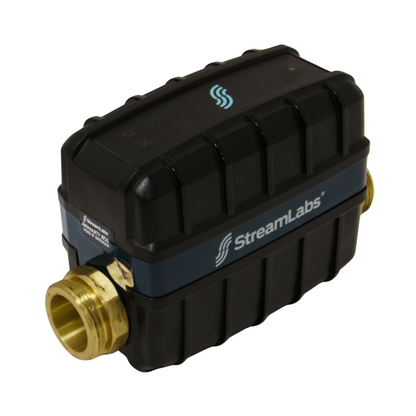

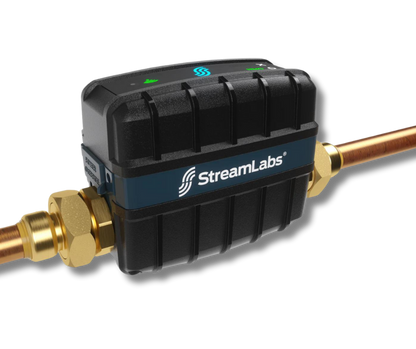

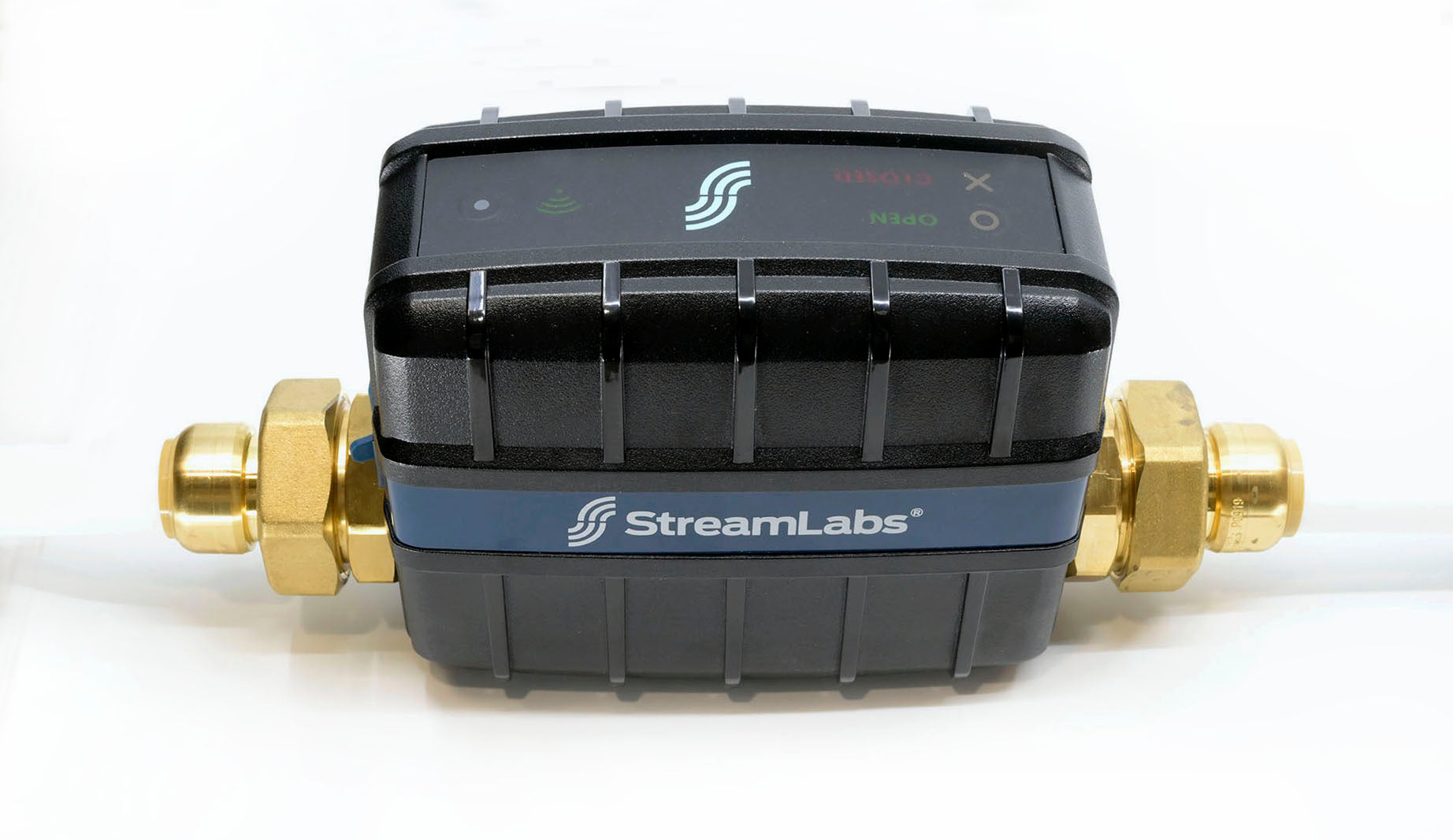

The StreamLabs Control is a smart automatic water shut-off valve designed with state-of-the-art ultrasonic flow metering technology to monitor and protect your entire home plumbing system.

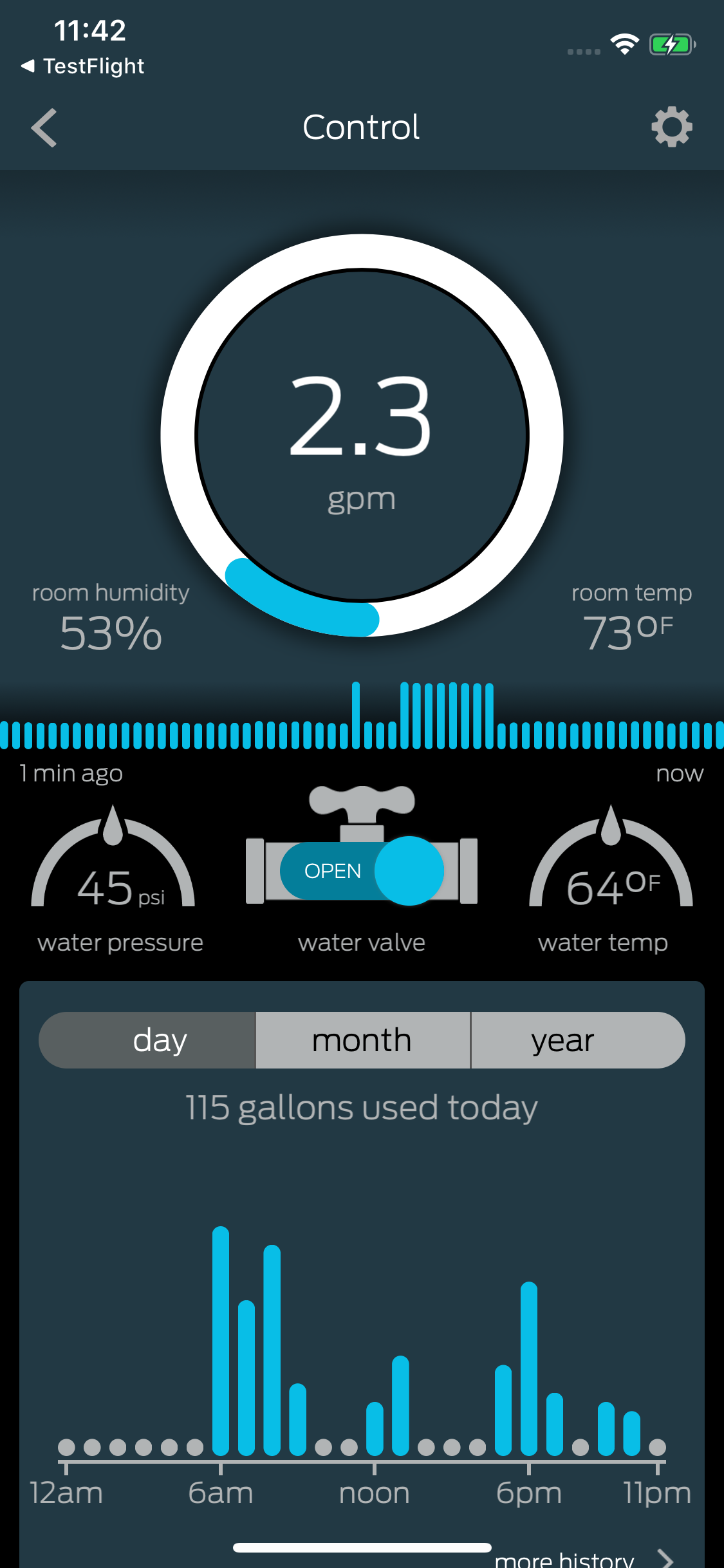

Through the StreamLabs App, the Control tracks and reports water usage by hour, day, and month, and sends alerts when leaks or freeze conditions are detected. Featuring home and away modes, the Control automatically shuts off water if a leak is detected with Smart Alerts learning leak detection.

With its advanced technology and convenient tracking capabilities, the StreamLabs Control offers peace of mind for homeowners by preventing costly water damage and alerting you to potential issues before they become emergencies. With features such as automatic shut-off and leak detection, it's the smart choice for protecting your entire home plumbing system.

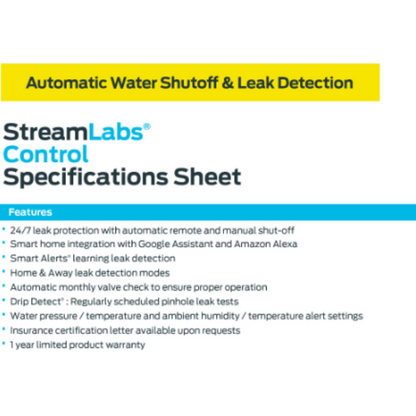

Technical Specifications

Caret Down
  • Dimensions: 8.0" (L) x 3.5" (W) x 5.4" (H)
  • Weight: 3.5 lbs (not including fittings)(H)
  • Warranty: 1 year limited product warranty
  • App Compatibility: iOS, compatible with iPhone or iPad, Android, compatible with phone or tablet*
  • Low-Flow Detection: 0.1 gpm low-flow detection

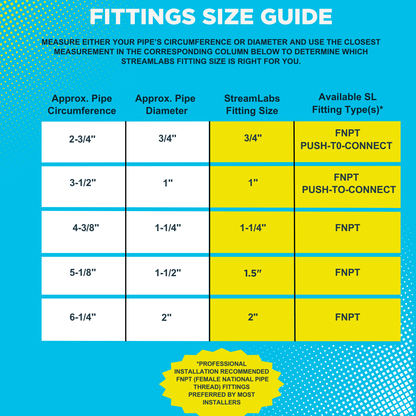

  • Compatible Pipe Sizes: 3/4", 1", 1-1/4", 1-1/2", and 2" Copper Tube Size (CTS) – Depending on fittings
  • Compatible Pipe Types: FNPT Threaded Connection: Any pipe type SharkBite®Connection:PEX, copper, CPVC, PE-RT**
  • Universal Power Supply: Input: 100-240VAC~50/600Hz, 0.5A;Output:12 V @ 1 A UL Listed 10’ cord included, 25’ & 50’ extension cable sold separately max distance 100’
  • Power Supply Length: 10 ft.(additional extension cables available for purchase, 25 & 50 ft.)
  • Water Temperature: min. 40°F (4.4°C) / max. 105°F (40°C) for optimal flow accuracy
  • Operating Pressure: max. 200 psi (14 bar) Limited by Pipe
  • Ambient Temperature: min. 32° F (0° C) / max. 115° F (46.1° C)for optimal flow accuracy
  • Operating Environment: Indoor use only.May be installed outdoors with a NEMA approved enclosure
  • IP Rating: IP 54 / 56 Rating***
  • Network: Wi-Fi 802.11b/g/n, 2.4 GHz

*Contact StreamLabs support for most up-to-date compatible version
**1-1/4" SharkBite fitting not approved for PE-RT use
***IP 54 rated for indoor use, IP 56 rating achievable with outdoor NEMA approved enclosure

Product Detection Settings

  • Slow Leak: 0.1, 0.25, 0.5, 1.0 GPM for 1, 5, 10, 15, 20, 30, or 60 mins
  • Major Leak: 2, 3, 4, 5, 10, 15 GPM for 5s, 30s, 1, 5, 10, 20, or 30 mins
  • Away Mode: Flow above 0.1 GPMThat lasts longer than 5s, 15s, 30s, 1, or 5 mins
  • Smart Alert: Control can learn usage habits, notify of any abnormal usage and shut off the water (optional)
  • Drip Detect™: Daily, Weekly, or Monthly Test (user configurable)
  • Pressure Alert: LOW: 10 psi, 20 psi, 30 psi, 40 psi for 1 minHIGH: 70 psi, 80 psi, 90 psi, 100psi for 1 min
  • Humidity Alert: LOW: 20%, 25%, 30%, 35% for 5 minsHIGH: 50%, 60%, 70%, 90% for 5 mins
  • Water Temperature Alert: LOW: 50°F, 45°F, 40°F, 35°F for 1 minHIGH: 90°F, 95°F, 100°F, 115°F for 1 min
  • Ambient Temperature Alert: LOW: 50°F, 45°F, 40°F, 35°F for 5 minsHIGH: 90°F, 100°F, 115°F, 120°F for 5 mins

*These settings are subject to change with updated software versions

Listings and Approvals

  • NSF/ANSI-61, NSF/ANSI-372, FCC, IC
